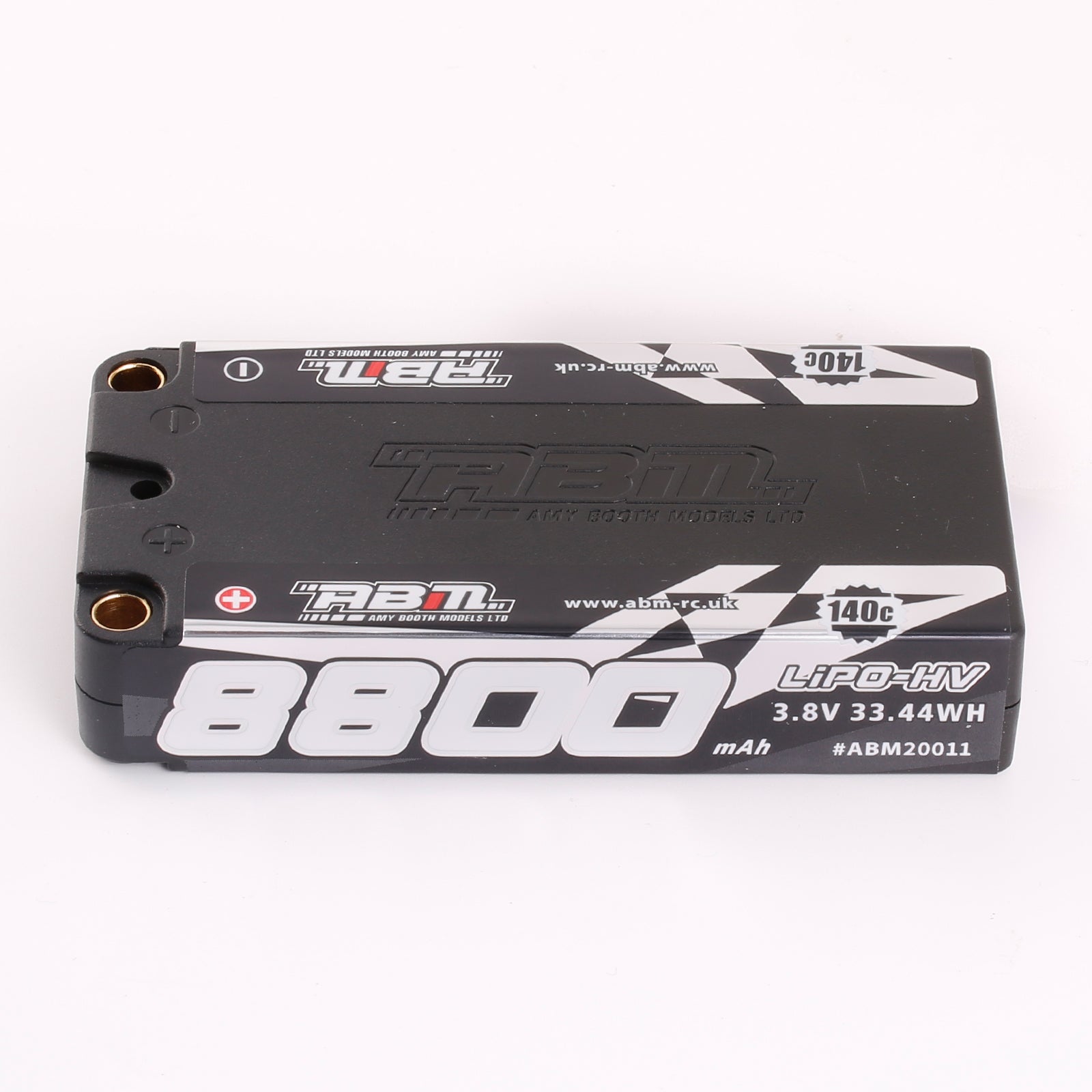

ABM 8800 Pan Car Style 3.8V Lipo-HV 140c 5mm Connectors

ABM 8800 Pan Car Style 3.8V Lipo-HV 140c 5mm Connectors BRCA legal for 2025 on..

Dimension and Visual

Configuration: 1s Pan Car Style
Battery pack weight: 154 ± 6.16g
Length: 92.5mm +0/-1mm
Width: 46.9mm +0/-1mm
Thickness: 18.5mm +0/-1mm
Casing material: ABS+PC
Casing nominal thickness: 1.0mm
Casing sealing: Sonic-welding
Discharge point: dia. 5mm tubes (positive / negative terminals)
Charging port: dia. 2mm tube balance

Ratings

Nominal Voltage: 3.8v
Nominal Capacity: 8600-8900mAh
Nominal Impedance: .9-1.3 mOhm per cell
Charging method: CC/CV mode (high quality LiPo chargers only)
Charge cutoff voltage: 4.20V ±0,05V
Charging current: 8.8 amps(typical)
2C charging possible, with special attention for accurate cutoff
Discharge cutoff voltage: 3.1V ±0,05V
Discharge continuous: 65c
Discharge pulse (max): 130c (less than 6sec. for each pulse)
Discharge Temp range: -20~+60 deg-C
Charging Temp range: 0~ +45 deg-C
Storage Temperature: -20~+45 deg-C
Storage Humidity: 65 ±20% RH
